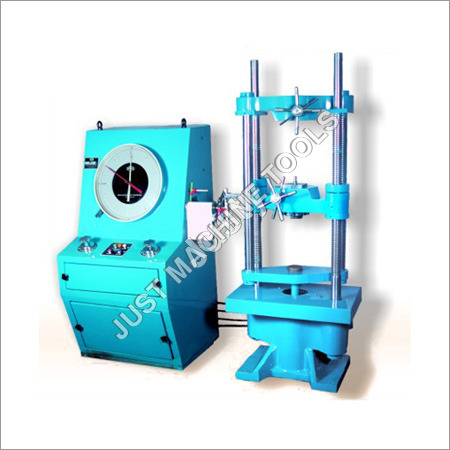

Universal Testing Machines (Digital)

Product Description

Universal Testing Machines (Digital)

Salient Features :

• Loading accuracy: As high as +1%
• Speeds: Straining at variable speeds to suit wide range of materials
• Facilities for Test: Motor - driven threaded columns for quick and convenient adjustment of lower cross head to facilitate rapid fixing of test specimen
• Ideal Dial: High reading accuracy due to large size ideal design of dial.
• Large Columns: Large effective clearance between columns enables testing of standard specimens as well as structures.
• Easy Changeability:Easy change from plain to threated and screwed specimens
• Simple and safe: Simple to operate
• Robust Construction
• Wide range of standard and special attachment accessories available.



Technical Specifications:

Model	Units	AMT-10	AMT-10E	AMT-20	AMT-20E	AMT-40	AMT-40E	AMT-60	AMT-60E	AMT-100	AMT-100E	AMT-200	AMT-200E
Max. Capacity		100		200		400		600		1000		2000
1st Measuring Range Resolution	KN	0-100 0.20	0.01 KN	0-200 0.40	0.02 KN	0-400 0.80	0.05 KN	0-600 1.00	0.05 KN	0-1000 2.000	0.10 KN	0-2000 4.00	0.20 KN
2nd Measuring Range Resolution	KN	0-50 0.10		0-100 0.20		0-200 0.40		0-300 0.50		0-500 1.00		0-1000 2.00
3rd Measuring Range Resolution	KN	0-25 0.05		0-50 0.10		0-100 0.20		0-120 0.20		0-250 0.50		0-500 1.00
4th Measuring Range Resolution	KN	0-10 0.02		0-20 0.04		0-40 0.08		0.60 0.10		0-100 0.20		0-200 0.40
Max. Clearance for Tensile Test	mm	50-700		50-700		50-700		50-800		50-850		50-900
Max. Clearance for Compression Test	mm	0-700		0-700		0-700		0-800		0-850		0-900
Clearance between Columns	mm	500		500		500		600		750		850
R.A.M. Stroke	mm	150		200		200		250		250		300
Straining/Piston Speed at no load	mm mm	0-300		0-150		0-150		0-100		0-80		0-45
Electric Supply	kw	1.0		1.0		1.75		1.9		2.6		3.00

Standard Accessories


For Tension Test: Clamping Jaws for round specimen	mm	10-20 20-30	10-20 20-30	10-25 25-40	10-25 25-40 40-55	10-20 25-40 45-70	20-40 40-60 60-80
Clamping Jaws for Flat specimen	mm	0-10 10-20	0-10 10-20	0-15 15-30	0-15 15-30	0-22 22-44 44-65	0-20 20-45 45-70
Width	mm	50	50	65	70	70	100
For Compression Test: Pair of compression plate of diameter	mm	120	120	120	120	160	220

For Transverse Test
Table with adjustable rollers

Width for rollers	mm	160	160	160	160	160	200
Diameters of rollers	mm	30	30	30	50	50	70
Max. Clearance between support	mm	500	500	500	600	800	900
Radius of punch top	mm	6, 12	6, 12	12, 16	16, 22	16, 22	30, 40
