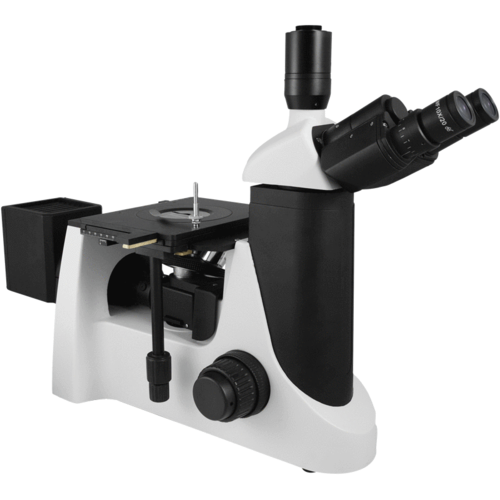

Inverted Metallurgical Microscope

Inverted Metallurgical Microscope
Inverted Metallurgical Microscope
Send Inquiry
Product Code : MET
Brand Name : JST
Price And Quantity
  • Minimum Order Quantity
  • 01
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 25000.00-350000.00 INR
Product Description

Eyepiece (Anti fungus)

  • Wide field 10X (paired) F.O.V. 20mm.

Objectives (Infinity corrected)

  • M Long working distance plan 5X
  • M Long working distance plan 10X
  • M Long working distance plan 20X
  • M Long working distance plan 50X

Mechanical Body

  • Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
  • Quadruple nosepiece on ball bearing.
  • Mechanical stage is 180mm X 155mm. Moving range 80mm X 50mm.
  • Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

Illuminator

  • Epi-Koehlers illumination. Aperture iris diaphragm 5W LED lamp AC 85-230V.
  • Adjustable brightness. Filter wheel fixed in light path with blue, green & yellow filters.

Standard Accessories

  • Blue, green & yellow filters, operating manual, dust cover, styrofoam molded pack.


Trade Information
  • Payment Terms
  • Cheque
  • Delivery Time
  • 1 Week
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
